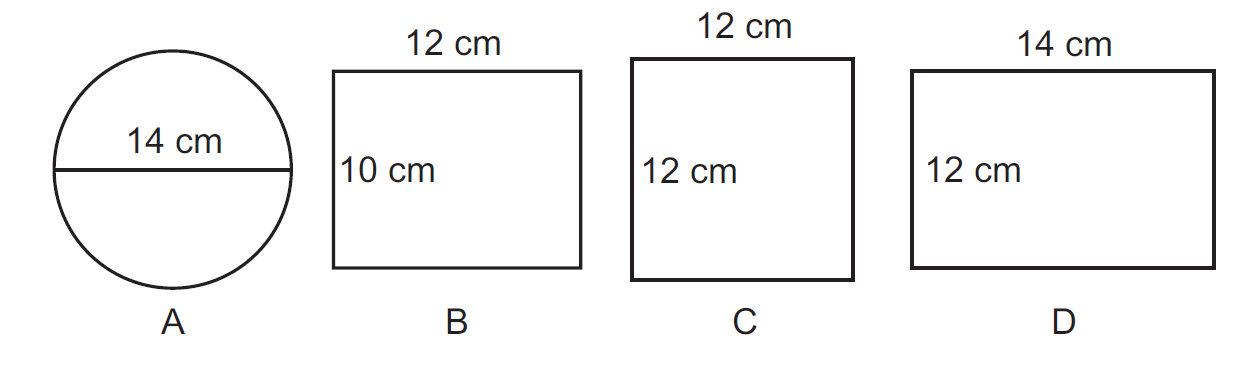

Which two figure have an equal area?

### Concept & Identification of Typo To find equal values, we must calculate the measurements of each figure. **Note:** This specific question contains a known historical typo in the source material. It asks for equal *area*, but mathematically, it is testing for equal *perimeter*. We will calculate both to demonstrate this. ### Step-by-Step Solution * **Calculate Areas:** * Figure A (Circle): $Area = \pi r^2 = \frac{22}{7} \times 7^2 = 154\text{ cm}^2$ * Figure B (Rectangle): $Area = L \times W = 12 \times 10 = 120\text{ cm}^2$ * Figure C (Square): $Area = S^2 = 12^2 = 144\text{ cm}^2$ * Figure D (Rectangle): $Area = L \times W = 14 \times 12 = 168\text{ cm}^2$ * *Result:* None of the areas are equal. * **Calculate Perimeters:** * Figure A (Circle): $Perimeter = \pi d = \frac{22}{7} \times 14 = 44\text{ cm}$ * Figure B (Rectangle): $Perimeter = 2(L + W) = 2(12 + 10) = 44\text{ cm}$ * Figure C (Square): $Perimeter = 4S = 4 \times 12 = 48\text{ cm}$ * Figure D (Rectangle): $Perimeter = 2(L + W) = 2(14 + 12) = 52\text{ cm}$ * **Conclusion:** The perimeters of Figure A and Figure B are exactly equal (44 cm). Given the options provided, the question intended to ask "Which two figures have an equal perimeter?". ### Exam Strategy & Shortcut If you quickly estimate the areas ($A \approx 150, B = 120, C = 144, D = 168$) and see no matches, immediately pivot to checking perimeters. Exam boards occasionally print "area" when they mean "perimeter" or vice versa. ### Common Pitfall Wasting time recalculating the areas multiple times assuming a math error was made, rather than identifying the question's textual flaw. ### Final Answer Therefore, the correct answer is **$A$ and $B$**.
